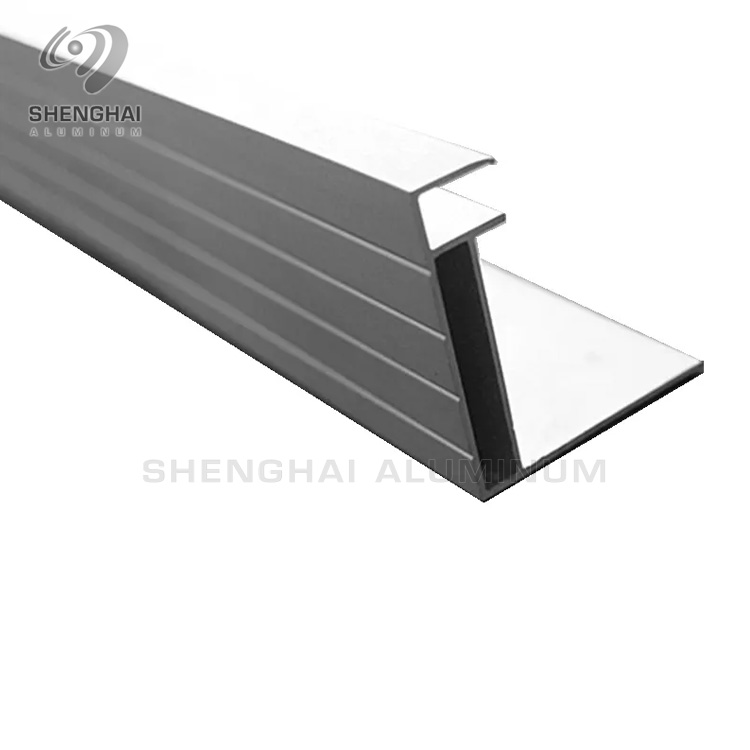

6061 or 6063 Extruded Aluminum Frame for Solar Panel

Solar Frame
6061 or 6063 Extruded Aluminum Frame for Solar Panel
6061 or 6063 Extruded Aluminum Frame for Solar Panel6061 or 6063 Extruded Aluminum Frame for Solar Panel6061 or 6063 Extruded Aluminum Frame for Solar Panel6061 or 6063 Extruded Aluminum Frame for Solar Panel
6061 or 6063 Extruded Aluminum Frame for Solar Panel
Color:
Sliver Anodizing or Customized
OEM:
Available
Free Samples:
About 1 days can be sent
Supply Ability:
1200-1600 tons per month
Payment:
T/T, L/C
Product Origin:
Foshan China
Shipping Port:
Shenzhen/Guangzhou/Foshan
Lead Time:
7-15 Days

CONTACT NOW

Product Description

The extruded aluminum frame is popular for solar panel applications because it provides a durable, lightweight, and cost-effective solution. Extrusion is a manufacturing process that involves shaping materials such as aluminum by forcing them through a die under high pressure.
Aluminum frames used in solar panels are typically made from high-strength, corrosion-resistant alloys such as 6061 or 6063 aluminum. These lightweight alloys provide excellent structural integrity, making them well-suited for outdoor applications.
Aluminum extrusion allows for precise shaping and customization of the aluminum frame, which can be designed to fit the specific dimensions and requirements of the solar panel. The frame can also be designed with features such as mounting holes, grooves, and channels for wiring and fasteners.
Our solar panel frame is made of Anodized Aluminium Alloy 6061 or 6063, which is coated with a clear finish to enhance its resistance to corrosion and oxidation. This material also exhibits high tensile strength performance, allowing it to withstand various weather conditions, such as heavy snow and rain and wind impact. Additionally, we use an excellent mold that minimizes the allowance to 0.02mm, ensuring accuracy and smooth installation.
Whether you have aluminum frames, mounting brackets, or other aluminum parts design drawings with or without solar panel, Shenghai Aluminum can help you. We can help you customize design drawings and provide customized aluminum solar extrusions of various aluminum alloys. To learn more about our aluminum solar extrusions, please visit the existing cases on our official website or message us.

Advantage of aluminum extrusion solar panel frame
1. Corrosion resistance and strong oxidation resistance;
2. Strong strength and firmness;
3. Strong tensile strength;
4. High elasticity, rigidity and metal fatigue value;
5. Convenient transportation and installation, even if the surface is scratched, it will not oxidize, and does not affect performance;
6. It can adapt to various environments through convenient selection of different materials;
7. The service life is more than 25 years.

Aluminum frame for solar panel size

25 mm × 25 mm
25 mm × 30 mm
30 mm × 35 mm
35 mm × 35 mm
35 mm × 40 mm
35 mm × 50 mm
Or customized

Product Application

Aluminum solar PV profile

Our Factory

Aluminum profile production process

Packaging Details
PE film for each profile/ Shrink PE film for each bundle, Slot packing, Craft paper/ Foam Paper/Carton box

Product Detail
Material & Temper Alloy 6063-T5,6061-T6 , We will never use aluminum scrap.
Surface Treament Mill-Finished, Anodizing, Powder Coating, Electrophoresis, Wood Grain, Polishing, Brushing, etc.
Colour Silver, Champage, Bronze, Golden, Black, Sand coating, Anodized Acid and alkali or Customized.
Film Standard Anodized:7-23 μ , Powder coating: 60-120 μ , Electrophoresis film: 12-25 μ.
Lifetime Anodized for 12-15 years outdoor, Powder coating for 18-20 years outdoor.
MOQ 500 kgs. Usually 10-12 tons for a 20'FT; 20-23 tons for a 40HQ.
Length 5.8M or Customized.
Thickness 0.4mm-20mm or Customized.
Application Building and Construction and Decoration.
Extrusion Machine 600-3600 tons all together 6 extrusion lines.
Capability Output 1200 tons per month.
Profile type 1. Sliding window and door profiles;
2. Casement window and door profiles;
3. Aluminum profiles for LED light;
4. Tile Trim Aluminum profiles;
5. Curtain wall profile;
6. Aluminum heating insulation profiles;
7. Round/Square General profiles;
8. Aluminum heat sink;
9. Others Industry profiles.
New Moulds Opening new mould about 7-10 days, absolutely moulds cost can be refund.
Free Samples Can be available all the time, about 1 days can be sent.
Fabrication Die designing→ Die making→ Smelting & alloying→ QC→ Extruding→ Cutting→ Heat Treatment→ QC→ Surface treatment→ QC→ Packing→ QC→ Shipping→ After Sale Service
Deep Processing CNC / Cutting / Punching / Checking / Tapping / Drilling / Milling
Certification 1. ISO9001-2008/ISO 9001:2008;
2. GB/T28001-2001(including all the standard of OHSAS18001:1999);
3. GB/T24001-2004/ISO 14001:2004;
4. GMC.
Payment 1. T/T: 30% deposite, the balance will be paid before delivery;
2. L/C: the balance irrevocable L/C at sight.
Delivery time 1. 15 days production ;
2. If opening mould, plus 7-10 days.
OEM Available.

feature of aluminum profiles

Table of Chemical Composition of Aluminum Alloy
Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
Unit Total
6063 0.2-0.6 <0.35 <0.1 <0.1 0.45-0.9 <0.1 <0.1 <0.1 <0.05 <0.15 Surplus
6061 0.4-0.8 0.7 0.15-0.4 <0.15 0.8-1.2 0.04-0.35 <0.25 <0.15 <0.05 <0.15 Surplus
6005 0.6-0.9 <0.35 <0.1 <0.1 0.4-0.9 0.1 <0.1 <0.1 <0.05 <0.15 Surplus
6060 0.3-0.6 0.35-0.6 0.1-0.3 <0.1 <0.1 <0.15 <0.05 <0.1 <0.05 <0.15 Surplus
