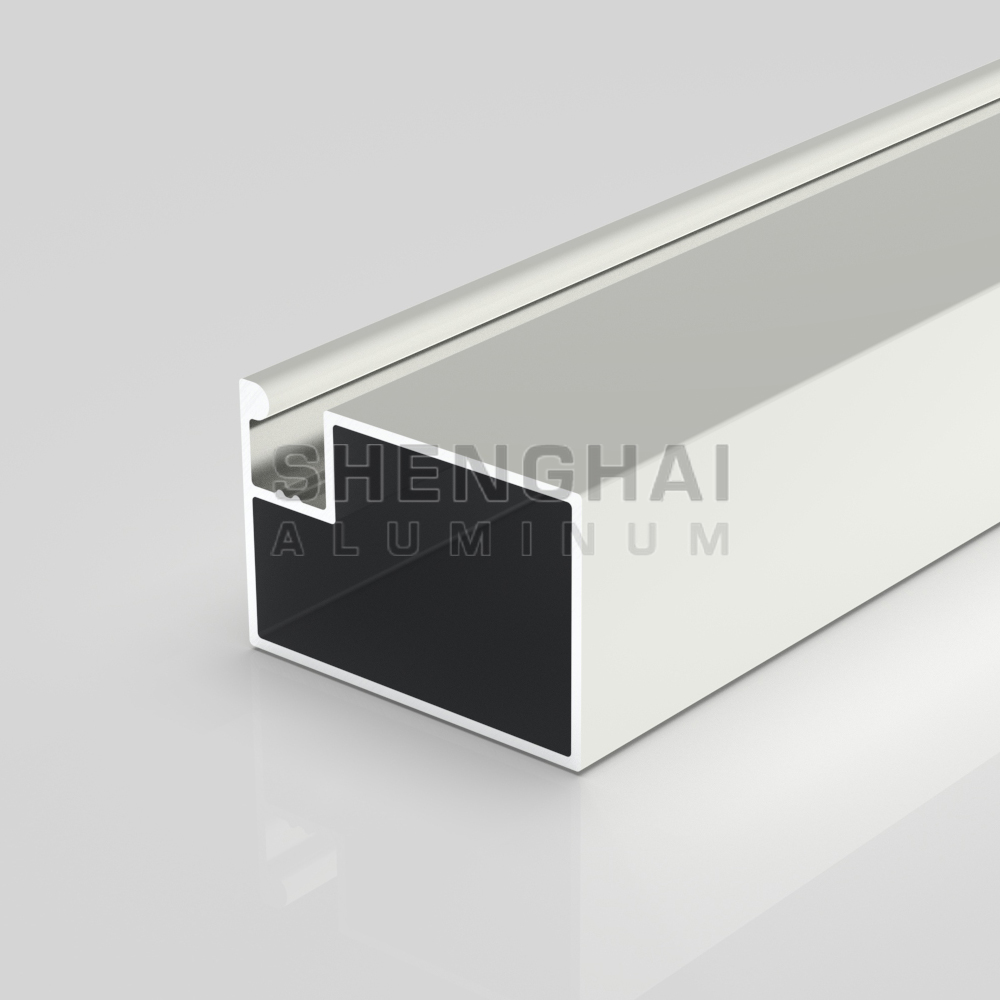

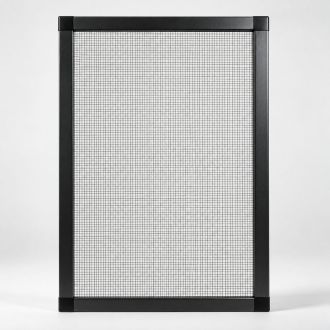

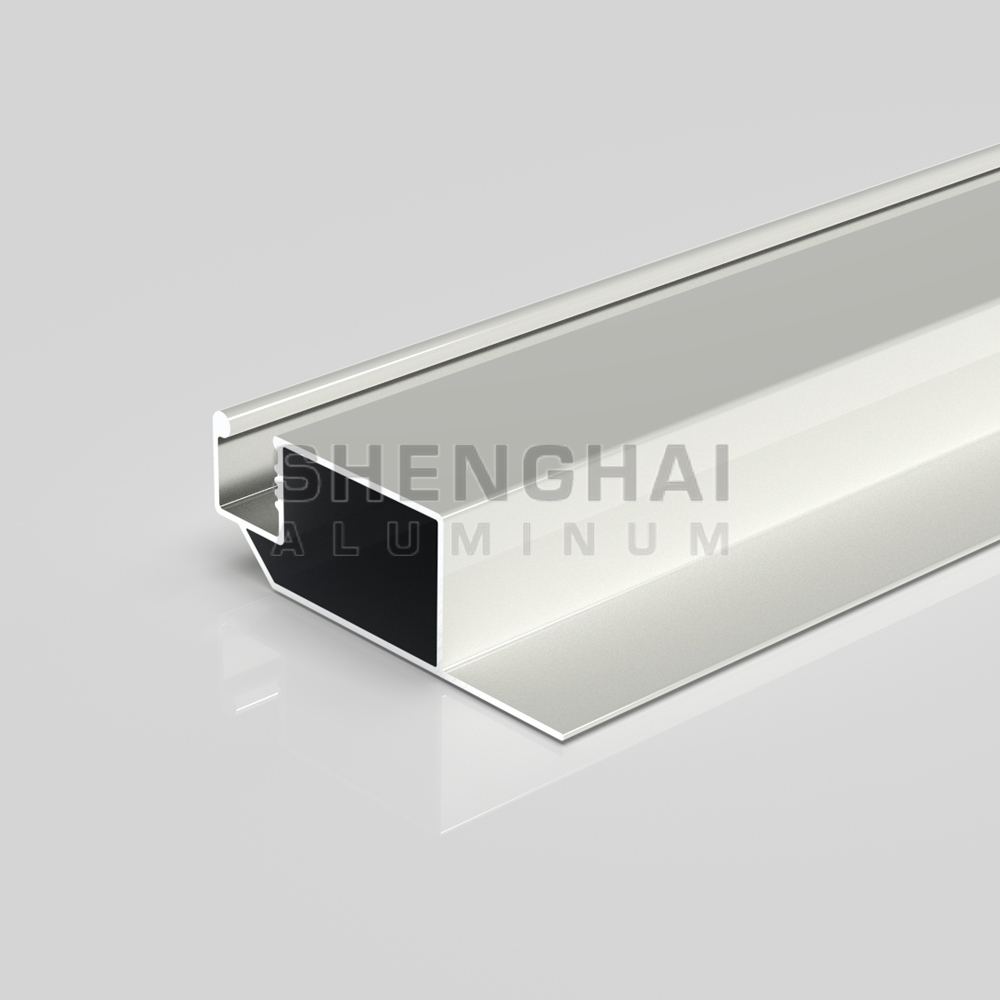

Custom Fixed Mosquito Net Aluminium Frame for Window
Our fixed mosquito screens feature lightweight aluminum alloy frames designed to hold insect mesh securely in place. The mesh helps prevent mosquitoes, flies and other insects from entering indoor spaces while allowing natural ventilation and visibility.
Available in custom sizes, profile designs and surface finishes, our aluminium mosquito frames can be manufactured according to customer drawings or project specifications. Whether you need frame profiles for local assembly or complete fixed insect screens for installation, Shenghai Aluminum supports OEM and bulk manufacturing requirements.
Product Feature:
1. Durable Aluminum Construction

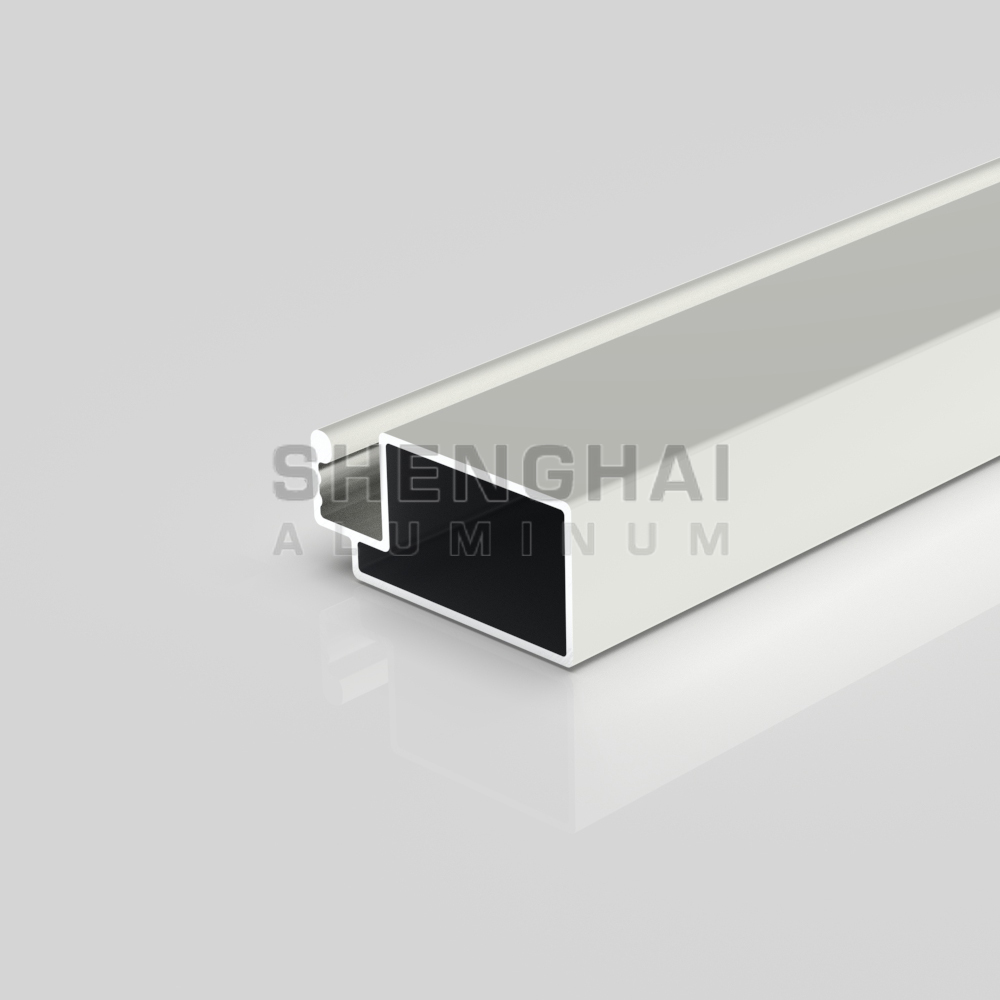

Our mosquito net frames are made from strong, corrosion-resistant aluminum profiles that provide stable support for the insect mesh. Anodized or powder-coated finishes further enhance surface protection and durability.
2. Effective Insect Protection & Natural Ventilation
The securely fitted insect mesh helps keep mosquitoes, flies and other insects outside while allowing fresh air to circulate through the window.

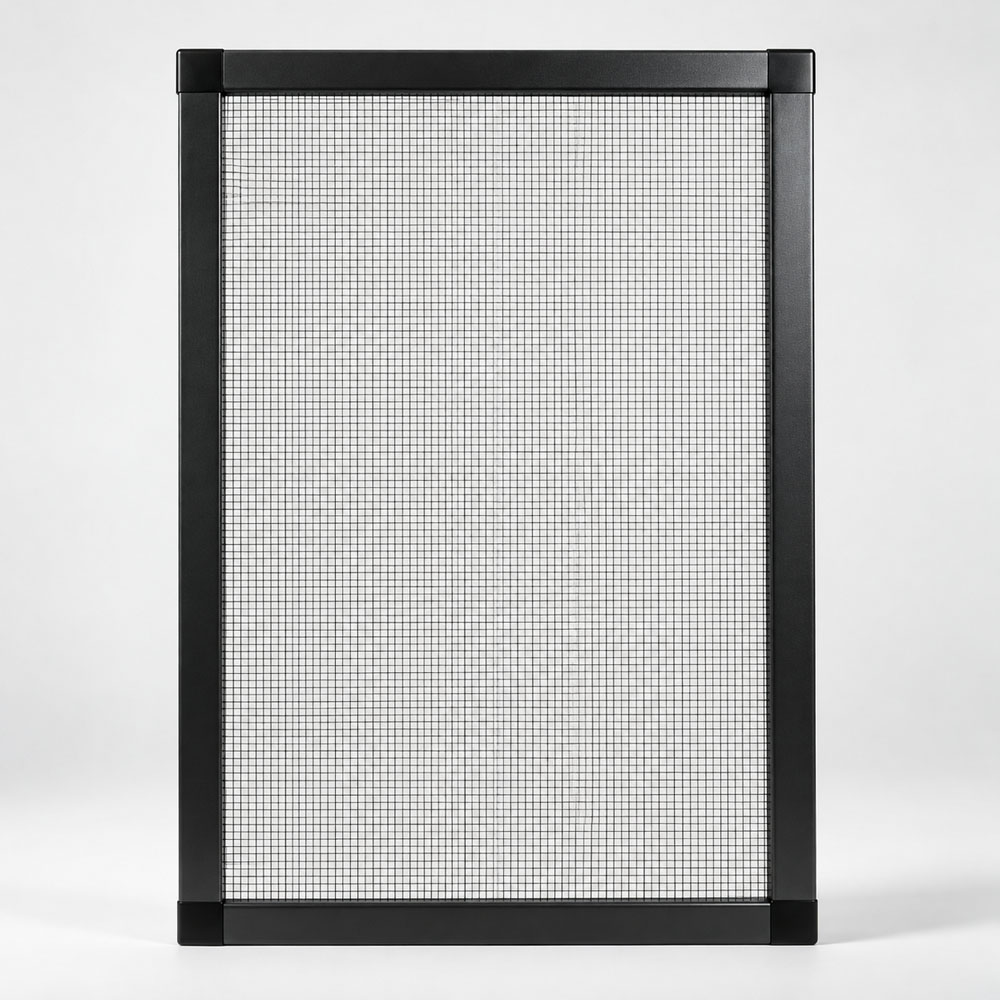

3. Simple Fixed Frame Design
Unlike sliding or retractable screens, fixed mosquito screens remain in place without moving parts. Their simple structure reduces mechanical components and makes everyday maintenance easier.
4. Customizable Frame & Complete Screen Solutions
Shenghai Aluminum offers custom manufacturing of both aluminium mosquito frame profiles and complete mosquito screen windows. Frame sizes, profile designs, surface finishes and mesh options can be tailored to different project requirements.
 |
 |
 |
Product Application
|
Parameter |
Specification |
|
Product Type |
Fixed Insect Screen Frame / Complete Screen |
|
Frame Material |
Aluminum Alloy |
|
Alloy Grade |
6063-T5 / 6063-T6 |
|
Frame Design |
Fixed Rectangular Frame |
|
Surface Treatment |
Anodizing, Powder Coating |
|
Frame Colors |
Black, White, Silver, Custom Colors |
|
Mesh Material |
Metal Insect Mesh; Other Options on Request |
|
Mesh Opening Size |
According to Mesh Specification |
|
Frame Dimensions |
Customized |
|
Profile Wall Thickness |
According to Profile Design |
|
Accessories |

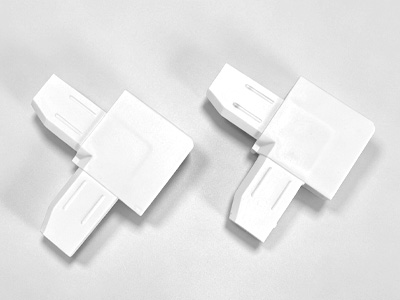

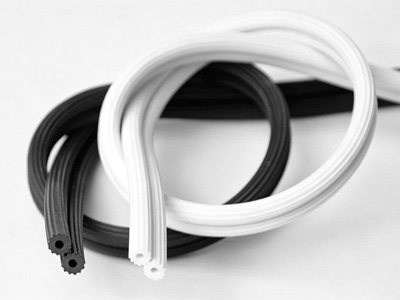

Corner Connectors, Mesh Retaining Strips |
|
Installation |
According to Window Opening and Fixing Design |
|
Supply Options |
Frame Profiles / Complete Fixed Screens |
|
Wire Diameter (mesh) |
0.008 - 0.015 inches (0.2 - 0.38 mm) |
|
UV Resistance |
ā„ 2500 hours (accelerated weathering) |
|
Corrosion Resistance |
ā„ 1000 hours salt spray (no red rust) |
|
Wind Load Capacity |
Up to 150 mph (depending on frame design and mounting) |
|
OEM / ODM |
Available |
|
Application |
Residential and Commercial Windows |
Mosquito Net Aluminium Frame FAQs
1. Can mosquito net aluminium frames be installed without drilling?Yes, some frame designs support no-drill installation using clips or other fixing systems. Compatibility depends on the window structure and mounting method.
2. Can you customize mosquito net aluminium frames for different window sizes?
Yes. Shenghai Aluminum offers custom frame sizes, extrusion profiles and surface finishes based on customer drawings or requirements.
3. How much does a custom aluminium mosquito frame cost?
Pricing depends on frame dimensions, aluminum profile specifications, mesh material, surface finish and order quantity. Contact us for a quotation.
4. Do aluminium mosquito screens reduce airflow or natural light?
Mosquito screens allow air and light to pass through, but airflow and visibility may vary depending on the mesh material and density.
5. Are aluminium mosquito screen frames removable for cleaning?
Some fixed screen designs can be removed for cleaning, depending on the installation method and frame structure.
6. What is the difference between fixed, sliding and retractable mosquito screens?
Fixed screens stay in place, sliding screens move along tracks, and retractable screens can be rolled or folded away when not needed.
7. Can mosquito net frames be installed on existing windows?
Yes. Custom mosquito net frames can be designed to fit many existing windows, provided there is sufficient installation space.

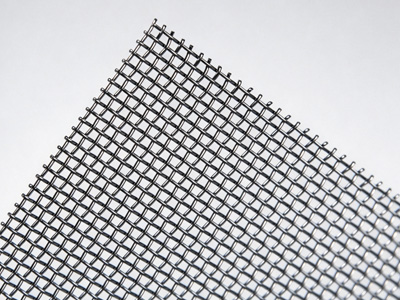

8. What types of insect screen mesh are available?
Common options include stainless steel, aluminum and fiberglass mesh. Available materials and specifications can be confirmed based on your project requirements.
9. Can damaged mosquito screen mesh be replaced?
Yes. In frames with removable mesh retaining strips, damaged mesh can usually be replaced without replacing the aluminum frame.
10. Do you supply aluminium mosquito frame profiles separately from complete screens?
Yes. Shenghai Aluminum supplies both custom aluminium mosquito frame profiles and complete mosquito screen windows for bulk orders.
Our Factory
| Material & Temper | Alloy 6063-T5,6061-T6 , We will never use aluminum scrap. |
| Surface Treament | Mill-Finished, Anodizing, Powder Coating, Electrophoresis, Wood Grain, Polishing, Brushing, etc. |
| Colour | Silver, Champage, Bronze, Golden, Black, Sand coating, Anodized Acid and alkali or Customized. |
| Film Standard | Anodized:7-23 Ī¼ , Powder coating: 60-120 Ī¼ , Electrophoresis film: 12-25 Ī¼. |
| Lifetime | Anodized for 12-15 years outdoor, Powder coating for 18-20 years outdoor. |
| MOQ | 500 kgs. Usually 10-12 tons for a 20'FT; 20-23 tons for a 40HQ. |
| Length | 5.8M or Customized. |
| Thickness | 0.4mm-20mm or Customized. |
| Application | Building and Construction and Decoration. |
| Extrusion Machine | 600-3600 tons all together 6 extrusion lines. |
| Capability | Output 1200 tons per month. |
| Profile type |
1. Sliding window and door profiles; 2. Casement window and door profiles; 3. Aluminum profiles for LED light; 4. Tile Trim Aluminum profiles; 5. Curtain wall profile; 6. Aluminum heating insulation profiles; 7. Round/Square General profiles; 8. Aluminum heat sink; 9. Others Industry profiles. |
| New Moulds | Opening new mould about 7-10 days, absolutely moulds cost can be refund. |
| Free Samples | Can be available all the time, about 1 days can be sent. |
| Fabrication | Die designingā Die makingā Smelting & alloyingā QCā Extrudingā Cuttingā Heat Treatmentā QCā Surface treatmentā QCā Packingā QCā Shippingā After Sale Service |
| Deep Processing | CNC / Cutting / Punching / Checking / Tapping / Drilling / Milling |
| Certification |
1. ISO9001-2008/ISO 9001:2008; 2. GB/T28001-2001(including all the standard of OHSAS18001:1999); 3. GB/T24001-2004/ISO 14001:2004; 4. GMC. |
| Payment |
1. T/T: 30% deposite, the balance will be paid before delivery; 2. L/C: the balance irrevocable L/C at sight. |
| Delivery time |
1. 15 days production ; 2. If opening mould, plus 7-10 days. |
| OEM | Available. |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al | |
| Unit | Total | ||||||||||
| 6063 | 0.2-0.6 | <0.35 | <0.1 | <0.1 | 0.45-0.9 | <0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | <0.15 | 0.8-1.2 | 0.04-0.35 | <0.25 | <0.15 | <0.05 | <0.15 | Surplus |
| 6005 | 0.6-0.9 | <0.35 | <0.1 | <0.1 | 0.4-0.9 | 0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
| 6060 | 0.3-0.6 | 0.35-0.6 | 0.1-0.3 | <0.1 | <0.1 | <0.15 | <0.05 | <0.1 | <0.05 | <0.15 | Surplus |
