How To Choose Aluminum Roller Shutter For Garage Door

Choosing the right aluminum roller shutter for garage door involves more than selecting a profile that looks good. The shutter needs to match the garage opening, required security and insulation performance, available installation space, operating method, and local environment.
For homeowners, garage door manufacturers, contractors, distributors, and project buyers, understanding these factors before ordering can help avoid problems with profile strength, shutter weight, installation space, or long-term performance.
This guide explains the key factors to consider when choosing an aluminum roller shutter for garage door.

1. Check the Garage Door Size Before Choosing an Aluminum Roller Shutter

Start with the actual dimensions of the garage opening.
* Opening width
* Opening height
* Available headroom
* Side installation space
* Required shutter box space

The opening size directly affects the selection of the aluminum slat, guide rail, bottom profile, roller barrel, and operating system.
For example, a small residential garage may use a relatively compact roller shutter profile, while a wider garage or vehicle entrance may require a stronger profile and supporting structure.
This is why it is better to determine the complete door dimensions before selecting the aluminum roller shutter profile.

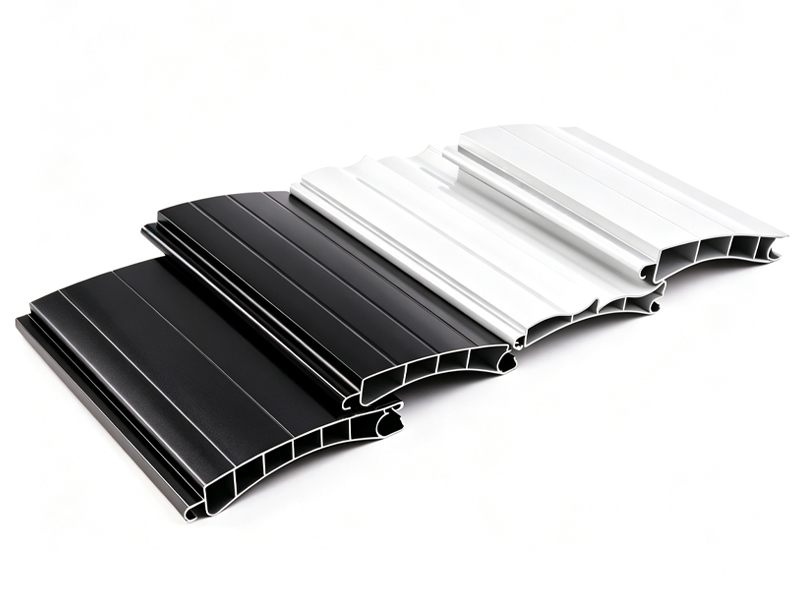

2. Choose the Right Aluminum Roller Shutter Profile

The roller shutter slat is one of the most important parts of a garage door. Its structure affects the overall strength, weight, insulation, appearance, and rolling performance of the shutter.
For garage applications, aluminum roller shutter slats are commonly available in single-layer and double-layer structures.

Single-Layer Aluminum Roller Shutter Profiles
Single-layer profiles are suitable when the project mainly requires:
* Lightweight construction
* Compact rolling
* Basic protection
* Simple installation
* Cost efficiency
They can be a practical choice for garages where thermal insulation is not a major requirement.

Double-Layer Insulated Profiles
Double-layer profiles have two aluminum walls and can incorporate an insulating core to improve thermal and sound insulation. They can be a suitable option for residential garages, particularly when the garage is connected directly to the house.
The appropriate profile should be selected according to the garage opening, required strength, shutter weight, and performance requirements rather than simply choosing the largest available profile.
Shenghai Aluminum is a China aluminum extrusion manufacturer specializing in customized aluminum profiles and roller shutter solutions. We provide customized aluminum roller shutter profiles based on specific project requirements, with one-stop extrusion and deep processing services from profile development to finished components.

3. Consider Security and Insulation for Your Aluminum Roller Shutter

Once the profile type is determined, consider what performance the garage door needs.

Security
For a garage door, security depends on more than the thickness of the aluminum slat.

The complete system should be considered, including:
* Slat structure
* Interlocking design
* Guide rails
* Bottom profile
* Locking components
* Installation method
For wider openings or higher-security applications, the profile and supporting components should be selected as a complete system.

Thermal and Sound Insulation
If the garage is attached to a house, workshop, or other occupied space, insulation may be more important.
Double-layer aluminum roller shutter slats with an insulating core can provide better thermal and acoustic performance than a basic single-layer profile.
Choose a single-layer profile when lightweight and compact construction are the main priorities.
Choose a double-layer insulated profile when thermal insulation, sound reduction, and indoor comfort are more important.

4. Choose Manual or Motorized Aluminum Roller Shutter Operation

Garage roller shutters can be operated manually or electrically. Shenghai Aluminum offers both options to suit different garage sizes, usage frequencies, and customer needs.
Motorized shutters are currently more popular for their convenience, while manual shutters remain a practical choice for smaller or less frequently used garages.

Manual Operation
Manual operation may be suitable for smaller garage doors, low-frequency use, or projects where a simple operating system is preferred.

Motorized Operation
Motorized roller shutters are generally more convenient for residential garages, commercial vehicle entrances, and frequently used garage doors.

The motor should be selected according to the door size, curtain weight, operating frequency, and required lifting capacity. It should therefore be considered together with the selected aluminum profile rather than as a completely separate component.
Installation space is also important
Because a roller shutter rolls vertically above the opening, it does not require the front clearance of a conventional swing door. However, sufficient space still needs to be reserved for the rolled curtain, barrel, shutter box, and other components.

5. Select the Right Surface Finish for Your Aluminum Roller Shutter

Aluminum provides a wide range of surface treatment options, making it easier to match the roller shutter with the building's appearance and environmental requirements.
* Mill finish
* Anodizing
* Powder coating
* Electrophoretic coating
* PVDF coating
* Wood-grain finish

For residential garages, powder coating or wood-grain finishes can be used to match doors, windows, walls, or other exterior elements.
For projects exposed to demanding outdoor conditions, the surface treatment should be selected according to the local environment and required durability.
Having extrusion and surface finishing handled by the same manufacturer makes the process easier to manage. The profile specifications, finish, and color can be confirmed together before production, helping ensure a more consistent final result.

6. What to Consider When Choosing an Aluminum Roller Shutter Manufacturer

For a standard garage door, an existing aluminum roller shutter profile may be sufficient. However, some projects require customized profiles, specific finishes, or further processing after extrusion.
In this case, it is useful to work with a manufacturer that can handle more than aluminum extrusion alone. Having profile development, extrusion, surface treatment, and downstream processing available under one production system can make it easier to keep specifications consistent throughout the project.

Shenghai Aluminum can provide customized production based on project requirements, covering aluminum roller shutter profile extrusion and downstream processing. Depending on the project, this can include design drawing, mold making, surface finishing and fabrication, as well as complete aluminum roller shutter production.

Choosing an aluminum roller shutter for a garage door is mainly about matching the shutter to the actual application. The most important factors are the opening size, profile structure, security and insulation requirements, operating method, installation space, and surface finish.
There is no single profile that works best for every garage. A standard profile may be suitable for a straightforward application, while larger or more specialized projects may require a customized profile or a complete roller shutter solution.

Shenghai Aluminum supplies both aluminum roller shutter profiles and complete aluminum roller shutters, with customized production available according to project requirements.
If you have a specific project or need help selecting the right aluminum roller shutter solution, please feel free to contact us.
