Aluminum Extrusion Profile Design: Key Considerations
Updated: 21 Aug 2026
Designing an aluminum extrusion profile requires more than creating the desired shape in CAD. A profile must meet the functional requirements of the final product while also allowing stable extrusion, practical tooling, and efficient secondary processing.
The right design can reduce material waste, simplify die manufacturing, improve dimensional consistency, and lower overall production costs. The following are the key considerations when designing an aluminum extrusion profile for manufacturing.
Wall thickness is one of the most important factors in aluminum extrusion profile design.
Where possible, maintain relatively consistent wall thickness throughout the cross-section. Large differences between thin and thick areas can create uneven metal flow during extrusion and make dimensional control more difficult.
This does not mean every section must have exactly the same thickness. Structural areas may require additional material, but unnecessary thick sections should be avoided.
A better approach is to:
* Keep wall thickness reasonably uniform
* Avoid abrupt changes between thin and thick sections
* Use ribs or webs where additional stiffness is needed
* Avoid unnecessarily thick areas that increase weight and material cost
The practical wall thickness depends on the alloy, profile geometry, extrusion equipment, and required dimensions. The extrusion manufacturer should review the design before tooling.
2. Profile Geometry and Complexity
The cross-sectional geometry directly affects extrusion difficulty.
Simple profiles are generally easier to extrude, while deep grooves, narrow projections, sharp transitions, and highly asymmetric sections can make metal flow and die design more challenging.
When designing a complex profile, consider whether every feature is necessary.
For example, a deep narrow tongue may be replaced with a wider feature or supported by a web. A complicated internal structure may also be simplified without affecting the final function.
Good extrusion design does not mean making the profile as simple as possible. It means using only the complexity that provides a clear functional benefit.
Generous transitions and rounded corners are generally preferable to unnecessary sharp internal features. This can improve material flow and reduce stress concentrations in the profile and tooling.
3. Ribs, Webs, and Hollow Sections
Ribs and webs can improve the stiffness of an aluminum extrusion without significantly increasing the amount of material used.
Instead of making an entire wall thicker, designers can place material where it contributes most to structural performance.
This approach can help:
* Increase bending stiffness
* Support thin walls
* Reduce profile weight
* Improve structural stability
* Create mounting or connection features
Hollow sections can also reduce material consumption while providing useful strength-to-weight performance. However, enclosed cavities and complicated hollow geometries generally require more sophisticated extrusion tooling.
When deciding between a solid and hollow design, consider the complete manufacturing process rather than material savings alone. A slightly simpler profile may provide a better balance between performance, tooling cost, and production efficiency.
4. Aluminum Alloy and Temper
Alloy selection should be based on both application requirements and extrusion performance.
6063 aluminum is widely used for architectural, decorative, and general-purpose extrusion because of its good extrudability and surface finishing characteristics.
6061 aluminum is commonly selected when higher mechanical strength is required, although its extrusion and finishing characteristics differ from 6063.
Other 6000-series alloys may be appropriate for applications with specific strength, corrosion, or processing requirements.
The temper should also be defined as part of the design. Common extrusion tempers include T5 and T6, with the appropriate choice depending on the required mechanical properties and application.
When selecting an alloy, consider:
* Required strength
* Corrosion resistance
* Surface finish
* Machinability
* Extrudability
* Final application
* Cost
The highest-strength alloy is not necessarily the most suitable choice. A practical material selection balances product performance with manufacturing requirements.
5. Dimensional Tolerances
Tolerances should be based on actual functional requirements.
Applying extremely tight tolerances to every dimension can increase manufacturing difficulty and cost without providing any practical benefit.
Instead, identify the dimensions that are critical to assembly or performance.
For example, a mounting interface or sliding surface may require tighter control, while a non-functional internal dimension may allow a larger tolerance.
When designing an aluminum extrusion profile:
* Identify critical dimensions
* Avoid unnecessarily tight tolerances
* Specify functional requirements clearly
* Separate extrusion dimensions from machined dimensions where appropriate
If a feature requires precision beyond what can be economically achieved through extrusion, it can often be completed through CNC machining after extrusion.
This approach allows the extrusion to provide the basic shape while machining achieves the final precision.
6. Die Design and Extrusion Feasibility
The profile drawing eventually becomes an extrusion die, so die design should be considered before the profile is finalized.
Profile complexity can affect:
* Die manufacturing cost
* Metal flow
* Extrusion speed
* Dimensional stability
* Die life
* Production consistency
Features such as extremely thin sections, deep narrow projections, complicated hollow cavities, and significant asymmetry can increase die complexity.
Profile size and cross-sectional area also need to match the extrusion press capability.
For this reason, a custom profile should be reviewed by the extrusion manufacturer before the die is produced.
A professional DFM review should consider whether the proposed cross-section can be extruded efficiently and whether small geometry changes could improve production.
In some cases, changing the profile by only a small amount can simplify the die and improve extrusion stability without affecting the final product function.
7. Secondary Processing and Surface Finish
The extrusion process does not necessarily need to produce every final feature.
Depending on the application, the extruded profile may require:
* Cutting
* CNC machining
* Drilling
* Tapping
* Punching
* Bending
* Chamfering
* Welding
The design should determine which features are best produced during extrusion and which should be completed afterward.
For example, a profile can be extruded to near-net shape and then CNC machined to create precise holes, slots, threads, or mounting surfaces.
Surface treatment should also be considered during the initial design stage.
Common aluminum extrusion finishes include:
* Anodizing
* Powder coating
* PVDF coating
* Brushing
* Polishing
* Sandblasting
* Wood grain transfer
If the profile has visible cosmetic surfaces, the alloy, extrusion quality, handling, and finishing process should be considered together.

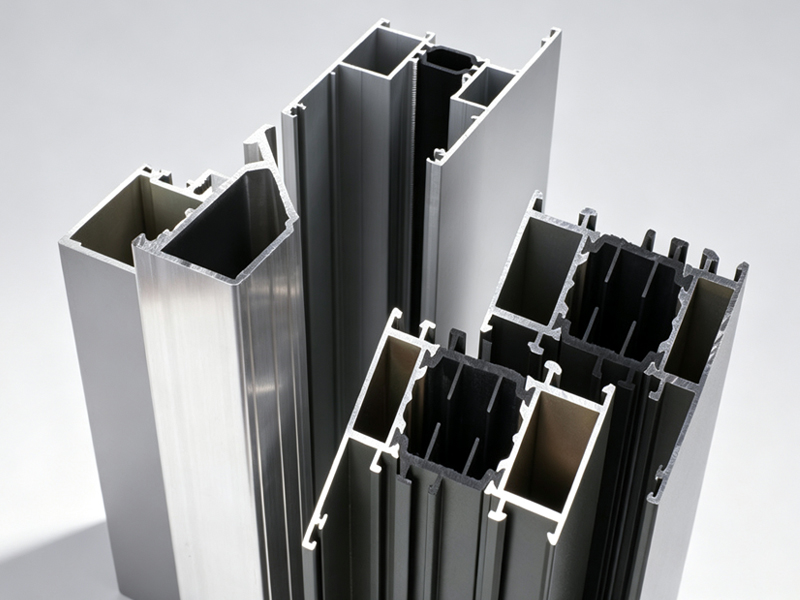

.jpg "Aluminum extrusion profile")
Final Design Review Before Tooling
Before releasing an aluminum extrusion profile for production, review the design from both product and manufacturing perspectives.
The key questions are:
* Is the wall thickness reasonably balanced?
* Are deep, narrow, or unsupported features necessary?
* Can ribs or webs improve the design?
* Is the hollow geometry practical?
* Is the selected alloy suitable?
* Are the specified tolerances realistic?
* Is the profile compatible with the extrusion equipment?
* Can some features be machined after extrusion?
* Is the required surface finish clearly defined?
A manufacturer should ideally review the 2D drawing and 3D CAD model before extrusion tooling begins. This early design-for-manufacturing review can help identify potential extrusion challenges, simplify tooling, and reduce unnecessary design changes.
The goal is not simply to create a profile that can be extruded, but to develop a profile that can be extruded consistently, finished correctly, machined efficiently, and produced at a competitive cost.

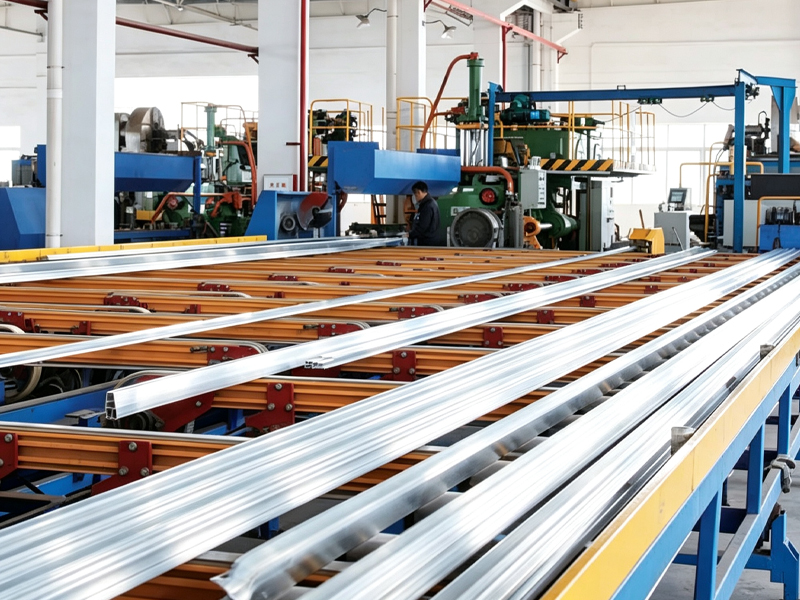

As an experienced China aluminum extrusion manufacturer, Shenghai Aluminum provides custom aluminum extrusion solutions from profile design and die development to extrusion, surface treatment, CNC machining, and further fabrication. By working with the manufacturer at the design stage, customers can develop aluminum extrusion profiles that balance performance, manufacturability, and overall production cost.
